Yet inside a semiconductor fab, the driver’s polyester underwear, carbon-grid coverall, conductive flooring, relative humidity, basing equipment, and wafer-handling series type one electric system, whether procurement treats them this way or not.
Why bet production return on an unproven coat?
ESD garments execute 2 separate work. They restrict electrostatic areas and cost transfer around electrostatic-discharge-sensitive devices, or ESDS gadgets. Cleanroom-qualified versions also have skin flakes, fibers, hair, and fragments released by people and their common garments.
Those functions overlap, yet they are not interchangeable. An ESD smock may control fee while losing too many fragments for a semiconductor cleanroom. A low-lint coverall may have fragments while building up adequate voltage to endanger a metal-oxide-semiconductor field-effect transistor, or MOSFET.
That distinction is where weak requirements fail.
The Hard Fact: ESD Clothing Are a System, Not a Smock
I think about “ESD risk-free” among one of the most mistreated phrases in industrial procurement. It seems conclusive. Typically, it is not.

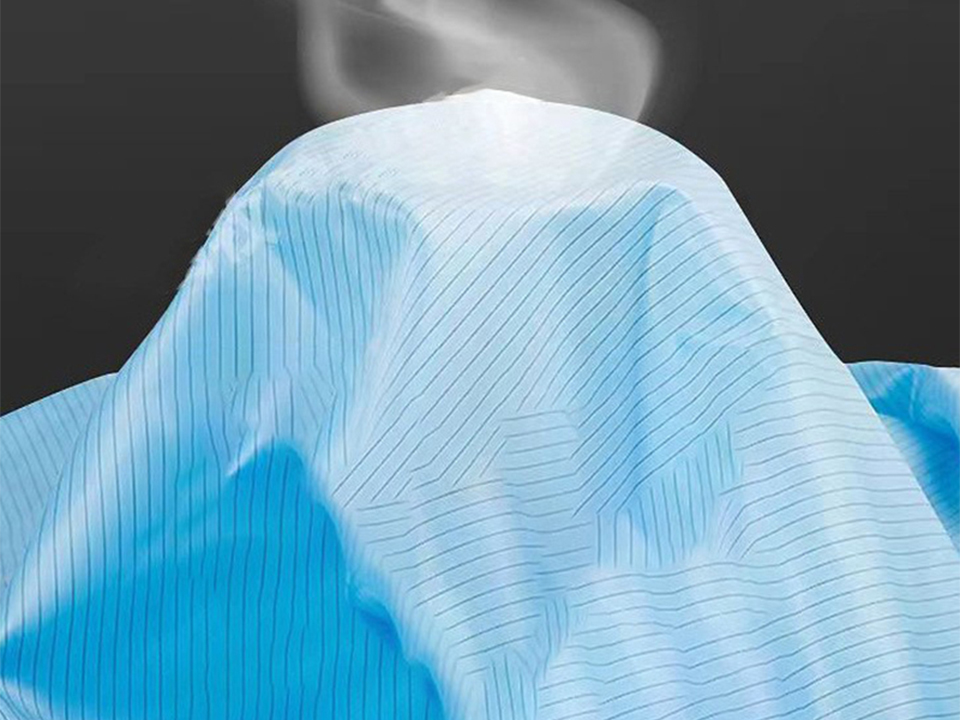

A garment may consist of polyester woven with conductive carbon thread in a 5 mm grid, yet still fail to supply a reliable grounding path since the grid is alternate throughout joints, the cuffs do not preserve skin call, or the operator never ever attaches the garment to an authorized ground.
The ESD Association divides static-control garments into three practical groups:
- Category 1:Â Subdues electrostatic areas from underlying clothing but is not connected to ground.
- Group 2:Â Can be based and uses better area reductions when appropriately attached.
- Group 3:Â Forms a groundable garment system that likewise bonds the user’s skin to a determined ground path.
According to the ESD Organization’s released support, a Classification 3 person-garment-grounding-cord system must have total resistance below 35 MΩ. That number issues. So does the expression “complete system.”
Checking a fabric swatch does not verify that the constructed garment jobs. Examining a garment without its wearer, cable, cuffs, closures, and grounding point does not prove that the operating system works either.
And a logo design proves nothing.
Just How ESD Clothes Quit Two Various Failure Courses
They regulate operator-generated electrostatic fee
Walking, bending, drawing on handwear covers, massaging sleeves against a bench, or removing product packaging can divide electrical cost with the triboelectric result. Artificial road apparel is particularly problematic since charge can stay separated from the body and might not drain pipes via a wrist band.
Properly developed static-dissipative garments resolve this in several means:
- They confine charge-generating apparel put on below.
- Conductive or dissipative fibers minimize fee buildup.
- The material attenuates electrostatic fields around delicate devices.
- Groundable layouts give a controlled path for cost dissipation.
- Complete garment systems can attach the driver’s skin to ground.
- Shut fronts, equipped cuffs, and constant joints lower field leak.
This matters due to the fact that semiconductor damages can take place at voltages much below the level an individual can really feel. Human perception generally begins around several thousand volts; contemporary components might call for controls based upon 100 V Body Model (HBM) and 200 V Charged Tool Model (CDM) sensitivity thresholds.
No trigger is required. No operator grievance appears. A tool may fall short instantly, or a damaged entrance oxide can make it through manufacturing facility testing and end up being a latent area failing months later.
Quiet damage counts.
They include human-generated particles
Individuals are mobile contamination sources. Skin flakes, hair, fabric fibers, cosmetics, breathing droplets, and particles entraped on street garments can all go into regulated production locations.
Semiconductor cleanroom clothing develops a physical obstacle between the driver and the procedure. Well-designed ESD cleanroom garments utilize low-lint textiles, covered seams, close-fitting cuffs, regulated closures, and suitable hoods or boots to reduce bit getaway.
Electrostatic control additionally aids indirectly. Charged surface areas bring in and retain air-borne bits; when those bits arrive on wafers, masks, optical surface areas, adapters, or hybrid-bonding user interfaces, they can create shorts, opens, pattern issues, adhesion failings, or return loss.
The existing ISO 14644-1 cleanroom category standard assesses airborne-particle focus across limit dimensions from 0.1 µm to 5 µm. That is air category, not garment certification, however it highlights the range at which contamination control runs.
A garment must for that reason pass two concerns:
- Does it control fee under the website’s genuine operating problems?
- Does it release an acceptable number of fragments after duplicated usage and laundering?
Anything much less is half a specification.
Semiconductor Fabs Placed Billions Behind Microscopic Threat Controls
The business economics are not subtle.
In November 2024, the U.S. Division of Business finalized a CHIPS incentive honor sustaining TSMC’s planned investment of more than $65 billion in 3 Arizona fabs, consisting of production related to advanced 2 nm innovation. The TSMC Arizona honor announcement explains approximately $6.6 billion in direct financing.
That same month, Commerce introduced approximately $7.865 billion for Intel as component of a planned American expansion surpassing $100 billion, according to the 2024 Intel CHIPS honor.
These are not garment study. They are capital-at-risk case studies.
When a fab represents tens of billions of bucks, treating electronic devices cleanroom garments as a generic consistent purchase is indefensible. The garment price is little relative to the process value it can expose. However customers still concentrate on device cost while ignoring resistance drift, seam continuity, particle release, laundry background, and driver grounding.
I assume that is false economic situation dressed up as sourcing self-control.
What the Specifications Really Inform Purchasers
Requirements do not select the garment for you. They provide examination approaches, program requirements, and common technical language.
The October 23, 2024 version of IEC 61340-4-9:2024 defines resistance dimensions for conductive and static-dissipative garments. The third version expanded the personnel-ground-path test voltage array from 7– 30 V DC to 7– 100 V DC and changed minimum cleansing preparation from five cycles to 3.
There is an insider detail worth discovering: the IEC cautions that its methods may not effectively determine garments with buried conductive layers. In plain English, even an identified lab approach can have restrictions relying on textile building and construction.
ANSI/ESD STM2.1 addresses resistance screening for static-control garments. ANSI/ESD S20.20 and IEC 61340-5-1 regulate broader ESD-control programs. ISO 14644 addresses cleanroom performance, while ISO 14644-18:2023 offers particularly with analyzing the suitability of cleanroom consumables.
Here is the practical department:
| Demand | Main concern | Valuable referral | Evidence a customer must ask for |
|---|---|---|---|
| Electrical resistance | Can charge dissipate through the desired garment course? | IEC 61340-4-9; ANSI/ESD STM2.1 | Complete-garment resistance record, examination voltage, humidity, electrode arrangement |
| Workers grounding | Is the user dependably attached to ground? | ANSI/ESD S20.20; IEC 61340-5-1 | Person-garment-ground test and grounding-component spec |
| Air tidiness | Does the area maintain its fragment category? | ISO 14644-1 | Center surveillance information and operating classification |
| Palatable viability | Is the garment appropriate for the controlled environment? | ISO 14644-18:2023 | Particle-release, material-compatibility, and application analysis |
| Reuse and laundering | Does performance endure real life span? | Website recognition plan plus relevant examination techniques | Outcomes by clean cycle, repair limits, deducible washing documents |
| Driver procedure | Is the system used and linked appropriately? | Website SOP and ESD-control plan | Training records, gowning monitorings, compliance audits |
A certificate containing only a resistance number is insufficient evidence. Without the test method, conditioning moisture, electrode placement, used voltage, sample dimension, garment state, and number of wash cycles, the buyer can not reproduce or interpret the result.
ESD Smocks and Coveralls Are Not Equal
An ESD smock is not automatically a replacement for a full semiconductor cleanroom coverall. Protection transforms both the electrostatic and particle-control efficiency.
| Garments type | Common insurance coverage | Static-control prospective | Fragment control | Usual weakness |
|---|---|---|---|---|
| Regular lab layer | Upper body and arms | Unproven | Reduced to modest | Road clothes continue to be subjected; material may create fee |
| Group 1 ESD smock | Torso and arms | Field reductions without grounding | Depends on building and construction | Conductive aspects can build up cost |
| Groundable ESD smock | Torso and arms | Greater field suppression when attached | Moderate if cleanroom-qualified | Ground cord might be left out or incorrectly attached |
| ESD cleanroom coverall | Full body | High when properly specified | High | Fit, seams, zipper, hood, and boots should function as one system |
| Classification 3 garment system | Application-dependent full system | Bonds wearer and garment to ground | Rely on cleanroom qualification | Efficiency breaks down if cuffs lose call or grounding fails |
| Non reusable “antistatic” coverall | Complete body | Extremely product-dependent | Product-dependent | Unclear cases, minimal wash data, or no system examination |
For semiconductor fabrication, advanced packaging, photonics, published circuit card assembly, and disk-drive production, my default preference is uncomplicated: pick the insurance coverage level from contamination threat initially, then confirm the electrostatic system around that garment.
Do not begin with color, pocket matter, or price.
Just how to Define the Best ESD Garments for Cleanrooms
The most effective ESD garments for cleanrooms are not the garments with the lengthiest attribute list. They are the garments whose verified efficiency matches the facility’s device level of sensitivity, ISO class, humidity, operator movement, laundering procedure, and grounding design.
A serious purchase requirements ought to cover the following.
Specify the secured item
State whether operators take care of bare passes away, wafers, reticles, photonic components, published circuit boards, packaged integrated circuits, MEMS devices, or completed equipment. Tape the center’s HBM and CDM control limits.
“Electronic devices usage” is far as well vague.
Name the garment group and grounding approach
Define whether the application needs field suppression, a groundable external garment, or a Category 3 person-grounding system. Define the suitable cord, snap, cuff, footwear, floor, and common-point ground.
If mobile operators rely on footwear and flooring, test that combination. If seated operators manage exposed ESDS devices, wrist straps or an accepted garment-grounding plan might still be required.
Need assembled-garment data
Request test results for ended up ESD smocks and coveralls, not just fabric rolls. Joints, zippers, snaps, cuffs, embroidery, repair services, and panel joins can disrupt the conductive path.
Ask for:
- Test approach and basic version
- Applied DC voltage
- Family member humidity and conditioning time
- Resistance in between sleeves
- Resistance to the groundable factor
- Person-to-ground system resistance
- Sample amount and failing standards
- Outcomes prior to and after laundering
- Test-laboratory identity and certification range
Validate fragment behavior
Electric resistance says absolutely nothing about linting. Require particle-release or dispersal information ideal to the intended cleanroom and garment system.
Examine joint building and construction closely. Bound or enclosed joints typically consist of fibers much better than subjected overlock sewing. Covered zippers, secure closures, knitted cuffs, boot user interfaces, and hood overlap also influence particle getaway.
Evaluate the most awful reliable problem
Low family member humidity usually enhances static threat. Movement increases both cost generation and particle release. Laundering modifications fibers, surfaces, seams, and conductive networks.
So examination used garments after reasonable wash cycles, at the reduced end of the authorized humidity variety, while operators perform depictive activities. A beautiful example sitting level on a research laboratory bench is a very easy examination and an inadequate simulation.
Laundering Is Where Weak Garments Get Revealed
Recyclable static-dissipative garments age.
Conductive yarns can break. Carbon-grid continuity can deteriorate. Cuffs stretch. Snaps loosen. Zippers accumulate deposit. Seams abrade. Cleaning agent chemistry and drying temperature level can alter surface area actions. Repairs may reconnect the cloth mechanically without restoring its electric course.
This is why a distributor’s statement such as “good for 100 cleans” ought to activate inquiries, not authorization.
Ask what “good” methods. Does every garment survive 100 cycles, or did a tiny example retain one measured residential property under regulated problems? Was particle launch determined? Coincided closures and cuffs tested? What happened at cycles 25, 50, 75, and 100?
A workable control program typically includes:
- Unique garment recognition
- Issue and return records
- Laundry-cycle monitoring
- Authorized repair service techniques
- Specified retired life limitations
- Periodic resistance sampling
- Aesthetic examination of cuffs, joints, snaps, and closures
- Immediate quarantine after a stopped working check
- Lot-level traceability for brand-new garments
I would certainly deny any reusable-garment program that can not tell me the number of cycles a specific coverall has actually experienced. “Roughly” is not traceability.
Stop Mixing Cleanroom Controls With Ordinary Disposable Barriers
Factories usually acquire medical-room, visitor-area, and basic facility consumables through the exact same procurement group. That is regular. Treating every disposable item as cleanroom-compatible is not.
For instance, 3-ply non reusable earloop face masks for wholesale supply may suit a facility clinic or marked general-use location, however the product would certainly need different particle, product, and electrostatic credentials before getting in an electronic devices cleanroom.
The same boundary applies to non reusable medical care underpads for wholesale circulation and customized disposable absorbing fitted bedspread. They are absorbent barrier products, not ESD-control gadgets.
Even wholesale non reusable oral headrest covers for centers belong in a different approved-use classification.
The tough regulation is straightforward: disposability does not show tidiness, and sanitation does not prove electrostatic security.
Each palatable requirements an intended-use declaration, accepted area, product assessment, product packaging evaluation, and– where relevant– electrical screening. Or else, a buyer might solve one contamination issue while introducing another.
Typical Failure Modes Auditors Must Search For
The coat is open
An unfastened smock exposes charge-generating apparel and destroys the designated field-suppression geometry. Convenience is not a valid exemption.
Grounding hardware exists yet is unused
A groundable garment without a confirmed ground link is just capable of working. Capacity is not regulate.
Gloves cover the cuffs improperly
Depending upon system layout, handwear cover positioning can hinder cuff-to-skin call or create a particle-release course. The gowning series need to match the validated garment system.
The material passed, however the seams did not
Conductive yarn that terminates at a seam may leave garment panels electrically isolated. Sleeve-to-sleeve and panel-to-ground examinations disclose what a fabric certificate conceals.
Operators use unapproved layers beneath
Fleece, woollen, polyester uniforms, and other shielding layers can produce cost and solid areas. The external garment must be certified against realistic underclothing, not an optimal laboratory clothing.
Laundry records are missing
Without laundry background, the website can not link resistance drift or fragment launch to garment age. It additionally can not implement retired life limitations.
Humidity is dealt with as the control
Humidity can affect cost generation, however it is not a substitute for grounding, validated garments, ionization, and protected job surface areas. Refine moisture may additionally be constricted by rust, products, and manufacturing demands.
Often Asked Concerns Concerning ESD Cleanroom Wardrobe
What are ESD garments?
ESD garments are engineered outerwear made with conductive or dissipative fibers that limit electrostatic area results, decrease fee build-up, and, in groundable layouts, give a controlled course toward ground while likewise containing fragments lost by the user when the garment is gotten cleanroom use.
They consist of smocks, laboratory layers, coveralls, hoods, pants, and complete garment-grounding systems. “Antistatic,” “conductive,” “dissipative,” and “groundable” explain various homes; purchasers must not treat those words as synonyms.
Exactly how do ESD garments secure semiconductor cleanrooms?
ESD garments safeguard semiconductor cleanrooms by enclosing charge-generating street clothing, attenuating electrical areas, dissipating fee via conductive fibers, and minimizing particle launch from skin and apparel; nonetheless, effective protection still depends on validated grounding, suitable shoes and floor covering, correct gowning, laundering controls, and routine electric screening.
The garment is one layer of an ESD-control program. Job surfaces, wrist straps, footwear, flooring, ionizers, packaging, tools grounding, moisture, and operator actions remain part of the protection system.
What is the difference in between cleanroom garments and anti-static apparel?
Cleanroom garments are garments systems certified primarily to consist of particles and stand up to contamination, whereas ESD garments are garments systems qualified to control electrostatic fee or areas; one product may do both tasks, yet neither tag proves dual performance without examination records covering bit actions and electric resistance.
For semiconductor cleanroom clothes, twin credentials is usually the factor. Customers require low-shedding building and construction and documented ESD efficiency after realistic laundering and usage.
What are the best ESD garments for electronics cleanrooms?
The most effective ESD garments for cleanrooms are application-matched systems whose electric group, resistance data, particle-shedding efficiency, fabric construction, closure layout, grounding method, wash-life restrictions, and cleanroom compatibility are recorded for the facility’s actual moisture array, ISO class, gadget level of sensitivity, and driver activity.
A much more pricey coverall with reproducible information can be less costly than an inexpensive garment that enhances unexposed failures, particle matters, audit findings, or replacement frequency.
Exactly how commonly should static-dissipative garments be checked?
ESD cleanroom garments must be checked according to a composed compliance-verification plan connected to the garment maker’s wash-life case, the site’s risk analysis, and the regulating ESD program; incoming qualification, regular resistance checks, post-laundering tasting, and prompt retesting after repair work or suspected failures need to all be specified.
The interval ought to end up being shorter when tools have lower damage thresholds, garments experience extensive laundering, environmental moisture is reduced, or historical information shows resistance drift.
Make Your ESD Garment Specification Auditable
Do not request “antistatic blue coveralls” and anticipate engineering control.
Specify the cleanroom class, HBM and CDM limits, garment category, grounding design, minimal insurance coverage, textile building, seam layout, resistance test technique, conditioning humidity, particle-release requirements, laundering procedure, wash-life verification, fixing regulations, and traceability needs.
After that ask the distributor for the raw reports.
